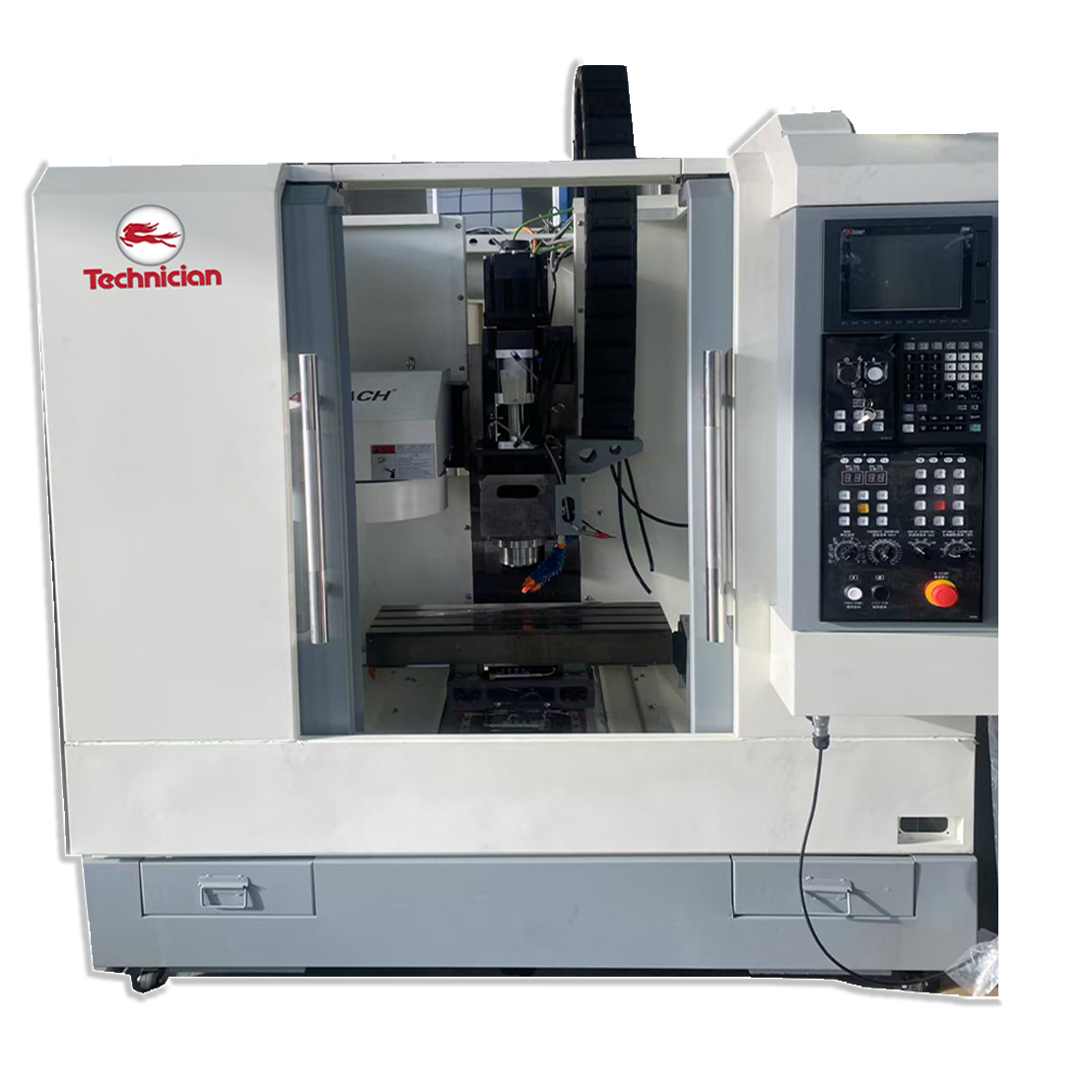

| Parameters | MC.032025 |
|---|---|
| Work-Table | |
| Size Of The Working Bench (mm) | 500 x 430 |
| Bench T-slot | 3x14x63 mm |
| Maximum Table Load (kg) | 100 |
| Travel Axis | |
| X-Axis(mm) | 330 |
| Y-Axis(mm) | 220 |
| Z-Axis(mm) | 320 |
| Spindle | |
| Spindle Motor (kw)) | 2.2/5.5 |
| Spindle Speed Synchronous Belt | 90-8000 RPM |
| Distance From Spindle Nose To Table(mm) | 80-400 |
| Distance From Spindle Center To Z-Axis Guideway Surface (mm) | 280 |
| Accuracy | |
| X and Y rapid feed rate 15mm/min | |
| Cutting feed rate (max)2000 mm/min | |
| Position Accuracy | |
| ความแม่นยำของตำแหน่ง | ±0.007(µm) |
| Repetition Accuracy | ±0.005(µm) |
| Tools | |
| Tools Bucket Magazine | 12 Tools |
| Toolholder | BT30 |
| Max. Tool Diameter | 85φ |
| Max. Tool Length(mm) | 200 |
| Max. Tool Weight (Kg) | 6 |
| Others | |
| Machine External Dimensions:Approx.(mm) | (L x W x H)1600x1630x2200 |
| Machine Weight,Approx.(kg) | 1,300 |
| Required Power Supply(V) | 220 |
